Creating distribution plot charts

qlik-embed: Where possible, use qlik-embed and qlik/api rather than this framework.

This section describes how to create distribution plots with the Visualization API.

Creating a basic distribution plot

In this example, you will create a basic distribution plot, containing one dimension and two measures, with a custom title and horizontal orientation.

  1. Create the chart.

    Create the container for the chart. The visualization type is distributionplot.

    app.visualization.create(
      'distributionplot',
      [],
      {}
    )

  2. Define the dimension.

    Define the dimension as a column.

    [
      {
        "qDef": {
          "qFieldDefs": [
            "=NetScoreName"
          ],
          "qFieldLabels": [
            "Net result"
          ]
        },
        "qNullSuppression": true
      }
    ]

  3. Define the measures.

    Define the measures as columns.

    [
      {
        "qDef": {
          "qFieldDefs": [
            "=NetScoreName"
          ],
          "qFieldLabels": [
            "Net result"
          ]
        },
        "qNullSuppression": true
      },
      {
        "qDef": {
          "qLabel": "Occurancies",
          "qDef": "Count(HoID)",
          "qNumFormat": {
            "qType": "F",
            "qnDec": 2,
            "qUseThou": 0
          }
        }
      }
    ]

  4. Define the title in the options.

    Next, define the title and the orientation in the options.

    {
      "showTitles": true,
      "title": "Net score result per hole"
    }


Result

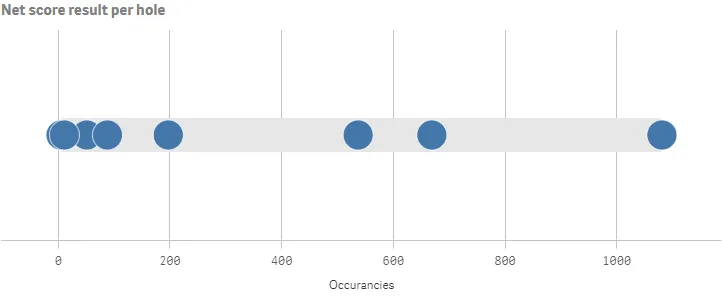

Example of distribution plot

Complete code example: Basic distribution plot

  • Visualization API
    const config = {
      host: '<TENANT_URL>', //for example, 'abc.us.example.com'
      prefix: '/',
      port: 443,
      isSecure: true,
      webIntegrationId: '<WEB_INTEGRATION_ID>'
    };

    require.config({
      baseUrl: `https://${config.host}/resources`,
      webIntegrationId: config.webIntegrationId
    });

    require(["js/qlik"], (qlik) => {
      qlik.on('error', (error) => console.error(error));
      const app = qlik.openApp('<APP_ID>', config);
      app.visualization.create(
        'distributionplot',
        [
          {
            "qDef": {
              "qFieldDefs": [
                "=NetScoreName"
              ],
              "qFieldLabels": [
                "Net result"
              ]
            },
            "qNullSuppression": true
          },
          {
            "qDef": {
              "qLabel": "Occurancies",
              "qDef": "Count(HoID)",
              "qNumFormat": {
                "qType": "F",
                "qnDec": 2,
                "qUseThou": 0
              }
            }
          }
        ],
        {
          "showTitles": true,
          "title": "Net score result per hole"
        }
      ).then((vis)=>{
        vis.show("QV01");
      });
    });


Presentation and color settings

In the example, you will change the way the distribution plot is presented by adding narrow grid line spacing and customizing the colors. All these changes are set in the options.

  1. Add narrow grid line spacing.

    Changes to the grid line spacing is set in the gridlines object. Disable auto grid lines and set spacing to 3 which means narrow.

    "gridlines": {
      "auto": false,
      "spacing": 3
    }

  2. Add custom colors to the chart.

    You can set the presentation colors of the distribution plot: box color and point color. They are defined in the color object and each array consists of a paletteColor definition where you set the actual color as an index number in the palette or as a HEX string color.

    This example use colors that are not in the default palette, defined by “index”: -1. The box color is a lighter shade of blue ("color": "#68b5de") while the point color is a darker shade of blue ("color": "#3a7391").

    "color": {
      "box": {
        "paletteColor": {
          "index": -1,
          "color": "#68b5de"
        }
      },
      "point": {
        "auto": false,
        "paletteColor": {
          "index": -1,
          "color": "#3a7391"
        }
      }
    }


Result

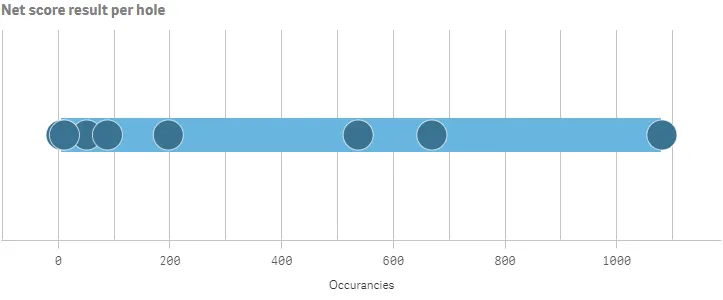

Example of distribution plot with color settings

Example of distribution plot with color
settings

Complete code example: Presentation and color settings

  • Visualization API
    const config = {
      host: '<TENANT_URL>', //for example, 'abc.us.example.com'
      prefix: '/',
      port: 443,
      isSecure: true,
      webIntegrationId: '<WEB_INTEGRATION_ID>'
    };

    require.config({
      baseUrl: `https://${config.host}/resources`,
      webIntegrationId: config.webIntegrationId
    });

    require(["js/qlik"], (qlik) => {
      qlik.on('error', (error) => console.error(error));
      const app = qlik.openApp('<APP_ID>', config);
      app.visualization.create(
        'distributionplot',
        [
          {
            "qDef": {
              "qFieldDefs": [
                "=NetScoreName"
              ],
              "qFieldLabels": [
                "Net result"
              ]
            },
            "qNullSuppression": true
          },
          {
            "qDef": {
              "qLabel": "Occurancies",
              "qDef": "Count(HoID)",
              "qNumFormat": {
                "qType": "F",
                "qnDec": 2,
                "qUseThou": 0
              }
            }
          }
        ],
        {
          "showTitles": true,
          "title": "Net score result per hole",
          "gridlines": {
            "auto": false,
            "spacing": 3
          },
          "color": {
            "box": {
              "paletteColor": {
                "index": -1,
                "color": "#68b5de"
              }
            },
            "point": {
              "auto": false,
              "paletteColor": {
                "index": -1,
                "color": "#3a7391"
              }
            }
          }
        }
      ).then((vis)=>{
        vis.show("QV01");
      });
    });


Dimension and measure axis settings

In this example, you will define how the measure axis is presented. This is set in the measureAxis object. If more than one dimension is used, the dimension axis settings are defined in the dimensionAxis object. This example display labels only on the measure axis . The axis also has narrow spacing and a custom range. The visualization consists of only one dimension so no dimension axis settings are needed.

  1. Set the labels and spacing.

    Set to display labels only on the measure axis: "show": "labels".

    Define that narrow spacing should be used: "spacing": 0.5.

    "measureAxis": {
      "show": "labels",
      "dock": "near",
      "spacing": 0.5
    }

  2. Customize the range.

    Enable custom range by setting "autoMinMax": false. Set the mode to display "minMax": "minMax" and then define the minimum and maximum values (0 and 1100).

    "measureAxis": {
      "show": "labels",
      "dock": "near",
      "spacing": 0.5,
      "autoMinMax": false,
      "minMax": "minMax",
      "min": 0,
      "max": 1100
    }


Result

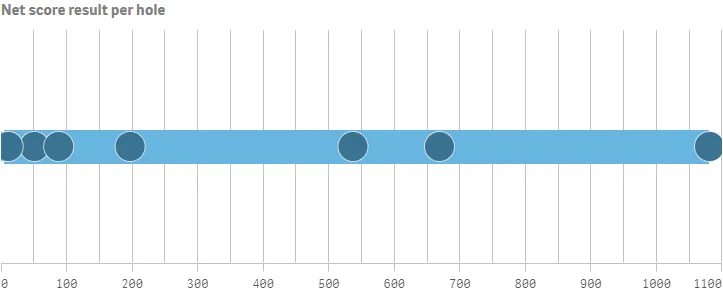

Example of distribution plot with
dimension and measure axis settings

Complete code example: Dimension and measure axis settings

  • Visualization API
    const config = {
      host: '<TENANT_URL>', //for example, 'abc.us.example.com'
      prefix: '/',
      port: 443,
      isSecure: true,
      webIntegrationId: '<WEB_INTEGRATION_ID>'
    };

    require.config({
      baseUrl: `https://${config.host}/resources`,
      webIntegrationId: config.webIntegrationId
    });

    require(["js/qlik"], (qlik) => {
      qlik.on('error', (error) => console.error(error));
      const app = qlik.openApp('<APP_ID>', config);
      app.visualization.create(
        'distributionplot',
        [
          {
            "qDef": {
              "qFieldDefs": [
                "=NetScoreName"
              ],
              "qFieldLabels": [
                "Net result"
              ]
            },
            "qNullSuppression": true
          },
          {
            "qDef": {
              "qLabel": "Occurancies",
              "qDef": "Count(HoID)",
              "qNumFormat": {
                "qType": "F",
                "qnDec": 2,
                "qUseThou": 0
              }
            }
          }
        ],
        {
          "showTitles": true,
          "title": "Net score result per hole",
          "gridlines": {
            "auto": false,
            "spacing": 3
          },
          "color": {
            "box": {
              "paletteColor": {
                "index": -1,
                "color": "#68b5de"
              }
            },
            "point": {
              "auto": false,
              "paletteColor": {
                "index": -1,
                "color": "#3a7391"
              }
            }
          },
          "measureAxis": {
            "show": "labels",
            "dock": "near",
            "spacing": 0.5,
            "autoMinMax": false,
            "minMax": "minMax",
            "min": 0,
            "max": 1100
          }
        }
      ).then((vis)=>{
        vis.show("QV01");
      });
    });


Multiple lines using inner and outer dimensions

In this example, you will add a second dimension which gives you one line for each value of the second (or outer) dimension.

  1. Add the outer dimension as a column.

    {
      "qDef": {
        "qFieldDefs": [
          "Date.autoCalendar.Year"
        ],
        "qFieldLabels": [
          "Year"
        ]
      },
      "qNullSuppression": true
    }

  2. Define the dimension axis.

    Since you now have two dimensions, you can configure the dimension axis. This example show labels only for the outer dimension.

    "dimensionAxis": {
      "show": "labels"
    }

  3. Add sorting.

    For distribution plots, sorting is done in the sorting object inside the options. This example is sorted alphabetically in descending order.

    "sorting": {
      "autoSort": false,
      "sortCriteria": {
        "sortByAscii": -1,
        "sortByLoadOrder": 1
      }
    }


Result

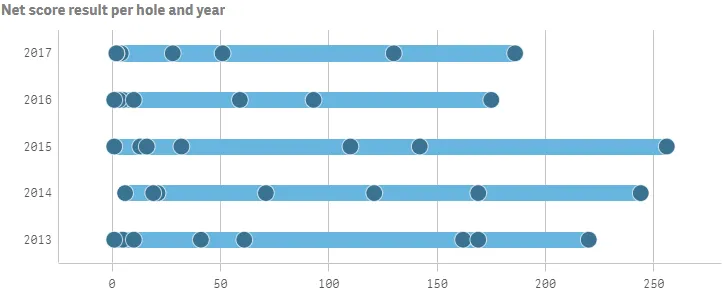

Example of distribution plot with
dimension and measure axis settings

Complete code example: Multiple lines using inner and outer dimensions

  • Visualization API
    const config = {
      host: '<TENANT_URL>', //for example, 'abc.us.example.com'
      prefix: '/',
      port: 443,
      isSecure: true,
      webIntegrationId: '<WEB_INTEGRATION_ID>'
    };

    require.config({
      baseUrl: `https://${config.host}/resources`,
      webIntegrationId: config.webIntegrationId
    });

    require(["js/qlik"], (qlik) => {
      qlik.on('error', (error) => console.error(error));
      const app = qlik.openApp('<APP_ID>', config);
      app.visualization.create(
        'distributionplot',
        [
          {
            "qDef": {
              "qFieldDefs": [
                "=NetScoreName"
              ],
              "qFieldLabels": [
                "Net result"
              ]
            },
            "qNullSuppression": true
          },
          {
            "qDef": {
              "qFieldDefs": [
                "Date.autoCalendar.Year"
              ],
              "qFieldLabels": [
                "Year"
              ]
            },
            "qNullSuppression": true
          },
          {
            "qDef": {
              "qLabel": "Occurancies",
              "qDef": "Count(HoID)",
              "qNumFormat": {
                "qType": "F",
                "qnDec": 2,
                "qUseThou": 0
              }
            }
          }
        ],
        {
          "showTitles": true,
          "title": "Net score result per hole and year",
          "gridlines": {
            "auto": true,
            "spacing": 2
          },
          "color": {
            "box": {
              "paletteColor": {
                "index": -1,
                "color": "#68b5de"
              }
            },
            "point": {
              "paletteColor": {
                "index": -1,
                "color": "#3a7391"
              }
            }
          },
          "measureAxis": {
            "show": "labels",
            "dock": "near",
            "spacing": 1,
            "autoMinMax": true
          },
          "dimensionAxis": {
            "show": "labels"
          },
          "sorting": {
            "autoSort": false,
            "sortCriteria": {
              "sortByAscii": -1,
              "sortByLoadOrder": 1
            }
          }
        }
      ).then((vis)=>{
        vis.show("QV01");
      });
    });
