Time-aware charts are visualizations that use a continuous scale to provide a complete and accurate view of time-based data. That is, when you enable continuous scaling on the x-axis in a chart with date fields, data points are separated from each other by a distance relative to their associated time. As well, the axis labels are evenly separated whether or not there is data for that point and the chart view is compressed to avoid scrolling.

A continuous scale is most commonly used with date fields such as:

  • Second
  • Minute
  • Hour
  • Week
  • Month
  • YearMonth
  • Quarter
  • YearQuarter
  • Year
  • Date
  • Timestamp

Time-aware bar charts

Create a time-aware bar chart, containing one dimension and one measure. The visualization type is barchart.

Define the dimension and the measure as columns. Note the number formatting applied to the measure.

{
  "qDef": {
    "qFieldDefs": [
      "Date.autoCalendar.Date"
    ],
    "qFieldLabels": [
      "Date"
    ]
  }
},
{
  "qDef": {
    "qLabel": "Strokes gained putting",
    "qDef": "Sum(ExpPutts-Putts)",
    "qNumFormat": {
      "qType": "F",
      "qnDec": 2,
      "qUseThou": 0,
      "qFmt": "#,##0.00",
      "qDec": ".",
      "qThou": ","
    }
  }
}

Define a title in the options: "title": "Strokes gained putting". In the dimensionAxis object, set "continuousAuto": false. Then set "preferContinuousAxis": true.

{
  "showTitles": true,
  "title": "Strokes gained putting",
  "dimensionAxis": {
    "continuousAuto": false,
    "show": "labels"
  },
  "preferContinuousAxis": true,
  "measureAxis": {
    "show": "labels"
  }
}

Result

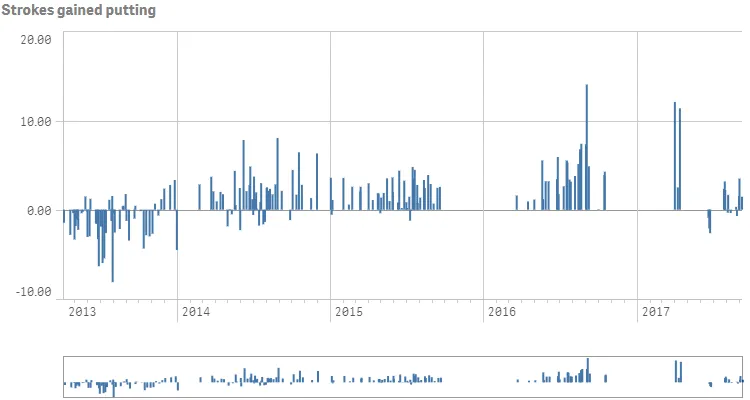

time aware bar chart

Code examples

Visualization API
app.visualization.create(
  'barchart',
  [
    {
      "qDef": {
        "qFieldDefs": [
          "Date.autoCalendar.Date"
        ],
        "qFieldLabels": [
          "Date"
        ]
      }
    },
    {
      "qDef": {
        "qLabel": "Strokes gained putting",
        "qDef": "Sum(ExpPutts-Putts)",
        "qNumFormat": {
          "qType": "F",
          "qnDec": 2,
          "qUseThou": 0,
          "qFmt": "#,##0.00",
          "qDec": ".",
          "qThou": ","
        }
      }
    }
  ],
  {
    "showTitles": true,
    "title": "Strokes gained putting",
    "dimensionAxis": {
      "continuousAuto": false,
      "show": "labels"
    },
    "preferContinuousAxis": true,
    "measureAxis": {
      "show": "labels"
    }
  }
).then(function(vis){
  vis.show("QV01");
});

Time-aware combo charts

Create a time-aware combo chart, containing one dimension and one measure. The visualization type is combochart.

Define the dimension and the measure as columns. This example displays the measure as a marker on the primary axis: "series": { "type":"marker", "axis": 0,. The marker type is a filled square: "marker": "rect", "markerFill": true }.

Also note the number formatting applied to the measure.

{
  "qDef": {
    "qFieldDefs": [
      "Date.autoCalendar.Date"
    ],
    "qFieldLabels": [
      "Date"
    ]
  }
},
{
  "qDef": {
    "qLabel": "Strokes gained putting",
    "qDef": "Sum(ExpPutts-Putts)",
    "qNumFormat": {
      "qType": "F",
      "qnDec": 2,
      "qUseThou": 0,
      "qFmt": "#,##0.00",
      "qDec": ".",
      "qThou": ","
    },
    "series": {
      "type": "marker",
      "axis": 0,
      "marker": "rect",
      "markerFill": true
    }
  }
}

Define a title in the options: "title": "Strokes gained putting". In the dimensionAxis object, set "continuousAuto": false. Then set "preferContinuousAxis": true.

{
  "showTitles": true,
  "title": "Strokes gained putting",
  "dimensionAxis": {
    "continuousAuto": false,
    "show": "labels"
  },
  "preferContinuousAxis": true,
  "measureAxis": {
    "show": "labels"
  }
}

Result

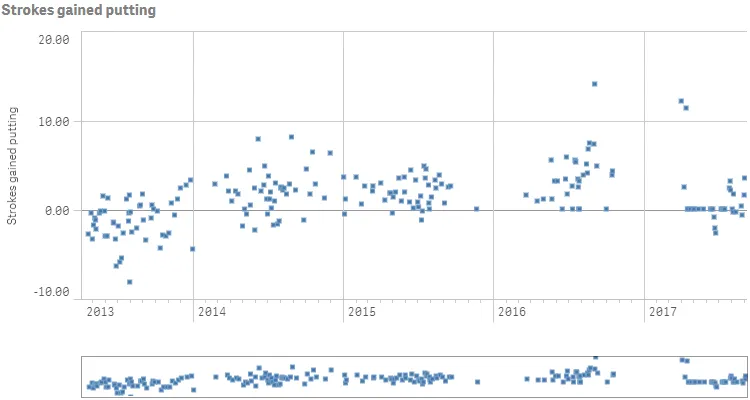

time aware combo chart

Code examples

Visualization API
app.visualization.create(
  'combochart',
  [
    {
      "qDef": {
        "qFieldDefs": [
          "Date.autoCalendar.Date"
        ],
        "qFieldLabels": [
          "Date"
        ]
      }
    },
    {
      "qDef": {
        "qLabel": "Strokes gained putting",
        "qDef": "Sum(ExpPutts-Putts)",
        "qNumFormat": {
          "qType": "F",
          "qnDec": 2,
          "qUseThou": 0,
          "qFmt": "#,##0.00",
          "qDec": ".",
          "qThou": ","
        },
        "series": {
          "type": "marker",
          "axis": 0,
          "marker": "rect",
          "markerFill": true
        }
      }
    }
  ],
  {
    "showTitles": true,
    "title": "Strokes gained putting",
    "dimensionAxis": {
      "continuousAuto": false,
      "show": "labels"
    },
    "preferContinuousAxis": true,
    "measureAxes": [
      {
        "show": "labels"
      },
      {
        "show": "all"
      }
    ]
  }
).then(function(vis){
  vis.show("QV01");
});

Time-aware line charts

Create a time-aware line chart, containing one dimension and one measure. The visualization type is linechart.

Define the dimension and the measure as columns. Note the number formatting applied to the measure.

{
  "qDef": {
    "qFieldDefs": [
      "Date.autoCalendar.Date"
    ],
    "qFieldLabels": [
      "Date"
    ]
  }
},
{
  "qDef": {
    "qLabel": "Strokes gained putting",
    "qDef": "Sum(ExpPutts-Putts)",
    "qNumFormat": {
      "qType": "F",
      "qnDec": 2,
      "qUseThou": 0,
      "qFmt": "#,##0.00",
      "qDec": ".",
      "qThou": ","
    }
  }
}

Define a title in the options: "title": "Strokes gained putting". In the dimensionAxis object, set "continuousAuto": false. Then set "preferContinuousAxis": true.

Result

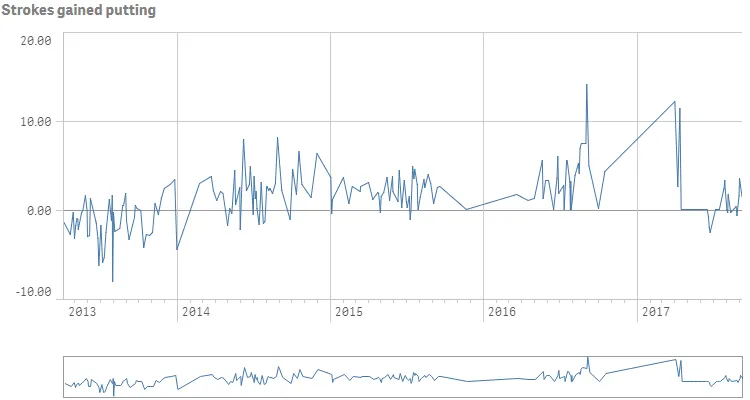

time aware line
chart

Code examples

Visualization API
app.visualization.create(
  'linechart',
  [
    {
      "qDef": {
        "qFieldDefs": [
          "Date.autoCalendar.Date"
        ],
        "qFieldLabels": [
          "Date"
        ]
      }
    },
    {
      "qDef": {
        "qLabel": "Strokes gained putting",
        "qDef": "Sum(ExpPutts-Putts)",
        "qNumFormat": {
          "qType": "F",
          "qnDec": 2,
          "qUseThou": 0,
          "qFmt": "#,##0.00",
          "qDec": ".",
          "qThou": ","
        }
      }
    }
  ],
  {
    "showTitles": true,
    "title": "Strokes gained putting",
    "dimensionAxis": {
      "continuousAuto": false,
      "show": "labels"
    },
    "preferContinuousAxis": true,
    "measureAxis": {
      "show": "labels"
    }
  }
).then(function(vis){
  vis.show("QV01");
});
