Add color to your visualizations

qlik-embed: Where possible, use qlik-embed and qlik/api rather than this framework.

Qlik Sense automatically colors visualizations as they are added to your web pages. You can manually set the colors in your visualizations to meet your requirements or preferences.

Overview

Not all Qlik Sense visualizations support the same coloring options. Additionally, some visualization types have specific behaviors or limitations when using certain coloring methods. Color methods supported by visualizations and their limitations are determined primarily by the kinds of data the visualizations displays. For example, visualizations that only support displaying measures cannot be colored by dimension or through using master dimensions.

The following table outlines color method support by visualization type.

Supported color methods

Visualization typeSingle colorMulticolorBy dimensionBy measureBy expression
Mode"mode": "primary""mode": "byMultiple""mode":"byDimension""mode":"byMeasure""mode":"byExpression"
Bar chart
Box plot----
Combo chart
Distribution plot----
Gauge----
Histogram----
KPI---
Line chart
List box-----
Pie chart
Pivot table----
Scatter plot-
Table----
Treemap
Waterfall chart----

Coloring limitations and behaviors

Different visualizations have different behaviors with the methods of setting color in visualizations. This section outlines specific considerations when coloring different visualizations.

Line charts

Line charts do not support coloring by measure if they have two or more dimensions.

The color object

Most color options for visualizations are set in the color object in the options. You activate custom coloring by setting "auto": false which turns off auto-coloring.

If "auto": true, no other properties need to be defined in the color object.

The following parameters can be set in the color object:

auto (boolean)

When "auto": true, color settings are based on the visualization used and the number of dimensions and measures, that is, the settings are not fixed, but are dependent on the data input.

mode (string)

The mode property sets the coloring mode for the visualization when auto-coloring has been switched off ("auto": false). Can be one of:

  • primary: a single color (by default blue) is used for all items in the chart. In visualizations that do not benefit from multiple colors (bar charts with one dimension and scatter plots), single color is the default setting.

  • byDimension: coloring is based upon the amount of dimension values. Details are set in the byDimensionDef property.

    Note: byDimension can only be used in conjunction with an attribute dimension on the dimension to color by, as shown in the example below.

{
  "qDef": {
    "qFieldDefs": [
      "NetScoreName"
    ]
  },
  "qAttributeDimensions": [
    {
      "qDef": "NetScoreName",
      "id": "colorByAlternative",
      "label": "Year"
    }
  ]
}
  • byExpression: coloring is based on an expression, which in most cases is a color code. Details are set in the expressionIsColor, expressionLabel and colorExpression properties.

  • byMeasure: coloring is based on the measure value. Details are set in the byMeasureDef property.

  • byMultiple: can be used when more than one measure is used. By default, 12 colors are used for the dimensions. The colors are reused when there are more than 12 dimension values.

useBaseColors(string)

Only applicable when "mode": "primary" or "mode": "byMultiple" has been defined.

Use colors encoded in master items. Should only be defined when a master dimension or master measure used in the visualization has a color assigned to it.

One of:

  • off
  • measure: use colors encoded in master measure.
  • dimension: use colors encoded in master dimension.

Default: off

paletteColor(object)

The paletteColor object is used to define the color when you color by single color ("mode": "primary"). It has the following properties:

paletteColor properties

NameTypeDescription
indexIntegerIndex in the palette. The default Qlik Sense color palette:
-1: set to use custom color that is not in the palette.
0: No color
1: White, HEX: #ffffff
2: Light green, HEX: #46c646
3: Green, HEX: #276e27
4: Light blue, HEX: #b6d7ea
5: Blue, HEX: #7db8da
6: Dark blue, HEX: #4477aa
7: Purple, HEX: #8e477d
8: Yellow, HEX: #ffcf02
9: Orange, HEX: #f8981d
10: Red, HEX: #f93f17
11: Brown, HEX: #633d0c
12: Light gray, HEX: #b0afae
13: Gray, HEX: #7b7a78
14: Dark gray, HEX: #545352
15: Black, HEX: #000000
Default: 6
ColorStringColor as HEX string.
Mandatory if "index": "-1".
persistent (boolean)

Set to true to use persistent colors on data points between selection states. Only applicable when using one dimension and when "mode": "byDimension" or when "mode": "byMultiple".

Default: false

expressionColor (boolean)

Set to true to define whether the result of the expression is a valid CSS3 color.

Only applicable when "mode": "byExpression".

Default: true

expressionLabel (string)

Defines the label on tool tips when using a coloring expression. Only applicable when "mode": "byExpression" and only used if "expressionIsColor": false.

colorExpression (ValueExpressionContainer)

Sets the color expression to be used when "mode": "byExpression" is defined.

Supported formats:

  • RGB
  • ARGB
  • HSL
measureScheme (string)

Color scheme when "mode": "byMeasure". Can be one of:

  • sg: (sequential gradient) the transition between the different color groups is made using different shades of colors. High measure values have darker hues

  • sc: (sequential classes) the transition between the different color groups is made using distinctly different colors.

  • dg: (diverging gradient) used when working with data that is ordered from low to high, for instance, to show the relationship between different areas on a map. Low and high values have dark colors, mid-range colors are light.

  • dc: (diverging classes) can be seen as two sequential classes combined, with the mid-range shared. The two extremes, high and low, are emphasized with dark colors with contrasting hues, and the mid-range critical values are emphasized with light colors.

Default: sg

useMeasureGradient (boolean)

Set to true if you want to apply the colors defined for library measures when used. Only applicable if "mode": "byMeasure".

Default: true

dimensionScheme (string)

Color scheme when "mode": "byDimension" or "mode": "byMultiple". Can be one of:

  • 12: 12 colors where all can be distinguished by people with vision deficiency.

  • 100: 100 colors where not all can be distinguished by people with vision deficiency

Default: 12

useDimColVal (boolean)

Set to true if you want to apply the colors defined for library dimensions when used. Only applicable if "mode": "byDimension".

Default: true

reverseScheme (boolean)

Set to true to reverse the color scheme.

autoMinMax (boolean)

Set to false to define custom color range. Custom color range is only applicable when coloring is by measure ("mode": "byMeasure") or by expression ("mode": "byExpression").

When coloring is by expression, "expressionIsColor": "false" must be set for a custom color range to work.

Default: true

measureMin (ValueExpressionContainer)

Set the min value for the color range.

Only applicable if autoMinMax: false. Can be used in conjunction with measureMax or on its own.

measureMax (ValueExpressionContainer)

Set the max value for the color range.

Only applicable if autoMinMax: false. Can be used in conjunction with measureMin or on its own.

byDimensionDef (object)

byDimensionDef properties

NameTypeDescription
labelStringDimension label.
keyStringField or expression that defines the dimension.
typeString-
byMeasureDef (object)

byMeasureDef properties

NameTypeDescription
labelStringMeasure label.
keyStringField or expression that defines the measure.
typeString-

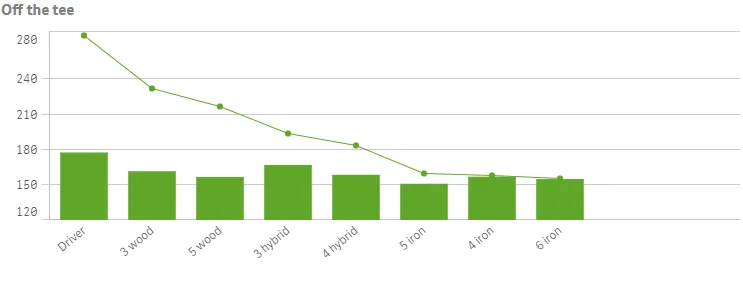

Color by single color

When you color by single color, one color is used for all objects in the chart. Coloring by a single color is best used for visualizations, such as bar or line charts, with a single dimension and measure.

You color by single color by setting "mode": "primary". You then define the color in the paletteColor object, see paletteColor (object).

Example: single custom color

"color": {
  "auto": false,
  "mode": "primary",
  "useBaseColors": "off",
  "paletteColor": {
    "index": -1,
    "color": "#61a729"
  }
}
coloring by single color

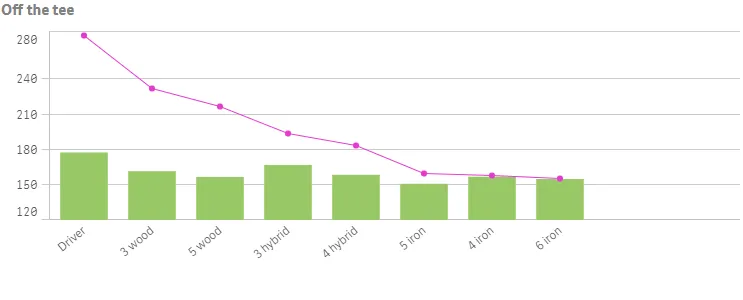

Color by multiple colors

When you have multiple measures in a visualization, you can set "mode": "byMultiple" to color each measure with a different color. Qlik Sense offers a 12-color and a 100-color palette to apply to the visualization in the dimensionScheme property.

  • 12: 12 colors where all can be distinguished by people with vision deficiency.

  • 100: 100 colors where not all can be distinguished by people with vision deficiency

By default, 12 colors is selected as the color scheme dimensions.

Example: color by multiple colors


"color": {
  "auto": false,
  "mode": "byMultiple",
  "dimensionScheme": "100"
}
coloring by multiple
colors

Color by dimension

When you color a visualization by a dimension, all values in the visualization are colored by the corresponding values in the dimension field selected. You set "mode": "byDimension" to color by dimension. You define the dimension to color by in the byDimDef object. Qlik Sense offers a 12-color and a 100-color palette to apply to the visualization in the dimensionScheme property.

  • 12: 12 colors where all can be distinguished by people with vision deficiency.

  • 100: 100 colors where not all can be distinguished by people with vision deficiency

By default, 12 colors is selected as the color scheme dimensions.

You can set "persistent": true which means that colors persist between selection states. If "persistent": false, colors will be changed and reassigned for different dimension values as selections are made in the visualization.

byDimension can only be used in conjunction with an attribute on the dimension to color by, as shown in the example below.

Example: color by dimension

Columns: color by alternative added as “qAttributeDimensions” on the dimension to color by

{
  "qDef": {
    "qFieldDefs": [
      "FirResult"
    ],
    "qFieldLabels": [
      "Driving accuracy"
    ]
  },
  "qNullSuppression": true,
  "qAttributeDimensions": [
    {
      "qDef": "FirResult",
      "id": "colorByAlternative"
    }
  ]
}

Options: color object

"color": {
  "auto": false,
  "mode": "byDimension",
  "persistent": true,
  "dimensionScheme": "12",
  "byDimDef": {
    "label": "Driving accuracy",
    "key": "FirResult",
    "type": "expression"
  }
}
coloring by dimension

Color by measure

When you color a visualization by a measure, all values in the visualization are colored by a gradient or class based on the values in the selected measure. Coloring by measure is useful when you want to clearly see objects colored by their corresponding measure value.

You set "mode": "byMeasure" to color by measure. You then have four available color schemes that you define in the measureScheme property.

  • sg: (sequential gradient) the transition between the different color groups is made using different shades of colors. High measure values have darker hues.

  • sc: (sequential classes) the transition between the different color groups is made using distinctly different colors.

  • dg: (diverging gradient) used when working with data that is ordered from low to high, for instance, to show the relationship between different areas on a map. Low and high values have dark colors, mid-range colors are light.

  • dc: (diverging classes) can be seen as two sequential classes combined, with the mid-range shared. The two extremes, high and low, are emphasized with dark colors with contrasting hues, and the mid-range critical values are emphasized with light colors.

You can reverse the color scheme by setting "reverseScheme": true which switches which colors are used for low values and which colors are used for high values in the selected color scheme.

You can define a custom measure value range by setting "autoMinMax": false. You then define measureMin and/or measureMax depending on how you want to set the range.

Measure range properties

NameTypeDescription
autoMinMaxBooleanSet to false to define custom color range. Custom color range is only applicable when coloring is by measure ("mode": "byMeasure") or by expression ("mode": "byExpression").
When coloring is by expression,"expressionIsColor": "false" must be set for custom color range to work.
Default: true
measureMinValue Expression ContainerSet the min value for the color range.
Only applicable if autoMinMax: false. Can be used in conjunction with measureMax or by its own.
measureMaxValue Expression ContainerSet the max value for the color range.
Only applicable if autoMinMax: false. Can be used in conjunction with measureMin or by its own.

Example: color by measure

"color": {
  "auto": false,
  "mode": "byMeasure",
  "measureScheme": "dc",
  "reverseScheme": true,
  "autoMinMax": true,
  "byMeasureDef": {
    "label": "Pts",
    "key": "Avg(Stableford)",
    "type": "expression"
  },
  "altLabel": "Pts"
}
coloring by measure

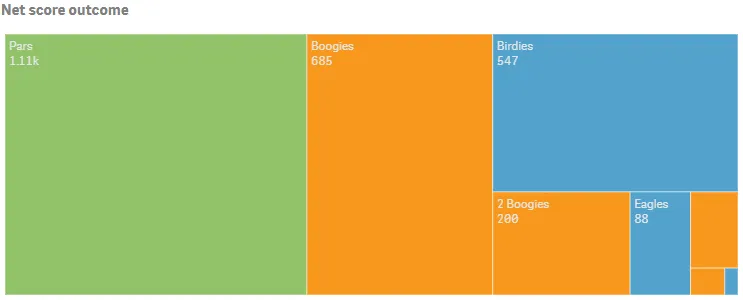

Color by expression

Coloring by expression applies colors to a visualization based on a user-defined expression. This enables you to use expressions to define both the colors used and the values upon which the colors are applied in a visualization. You could, for example, use an expression to set conditional colors in a chart.

Supported formats for color expressions are: RGB, ARGB, and HSL.

You set "mode": "byExpression" to color by expression. Details are then defined in the expressionIsColor, expressionLabel, and colorExpression properties.

byExpression can only be used in conjunction with an attribute expression on the first measure, as shown in the example below.

Example: color by expression

Columns: color expression added as “qAttributeExpressions” on first measure

{
  "qDef": {
    "qLabel": "Frequency",
    "qDef": "Count(NetScoreName)"
  },
  "qAttributeExpressions": [
    {
      "qExpression": "If(NetScoreDiff<0,RGB(82, 162, 204),\nIf(NetScoreDiff>0,RGB(248, 152, 29),RGB(145, 194, 106)))",
      "id": "colorByExpression"
    }
  ]
}

Options: color object

"color": {
  "auto": false,
  "mode": "byExpression",
  "expressionIsColor": true,
  "expressionLabel": "",
  "colorExpression": "If(NetScoreDiff<0,RGB(82, 162, 204),\nIf(NetScoreDiff>0,RGB(248, 152, 29),RGB(145, 194, 106)))"
}
coloring by expression

Color by expression in tables and pivot tables

Expressions can be used to color table and pivot table backgrounds and text. This enables you to use expressions to define both the colors used and the conditional values upon which the colors are applied in a visualization. You could, for example, use expressions to change text and background colors depending on the values within different table cells.

Cell background color in straight tables

Cell background color is applied as an attribute expression on the applicable column measure with "id": "cellBackgroundColor".

"qAttributeExpressions": [
  {
    "qExpression": "If(Avg(FwHit)>0.7,RGB(145, 194, 106))",
    "id": "cellBackgroundColor"
  }
]

Text color in straight tables

Text color is applied as an attribute expression on the applicable column measure with "id": "cellForegroundColor".

"qAttributeExpressions": [
  {
    "qExpression": "If(Avg(FwHit)<0.5,RGB(255, 115, 115))",
    "id": "cellForegroundColor"
  }
]

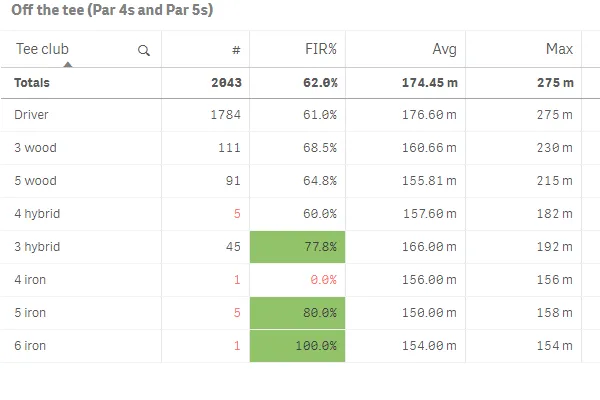

Using both background color and text color in a straight table column

When defining both background color and text color for a measure, you include two definitions in the attribute expression.

"qAttributeExpressions": [
  {
    "qExpression": "If(Avg(FwHit)>0.7,RGB(145, 194, 106))",
    "id": "cellBackgroundColor"
  },
  {
    "qExpression": "If(Avg(FwHit)<0.5,RGB(255, 115, 115))",
    "id": "cellForegroundColor"
  }
]
cell text coloring
straight table

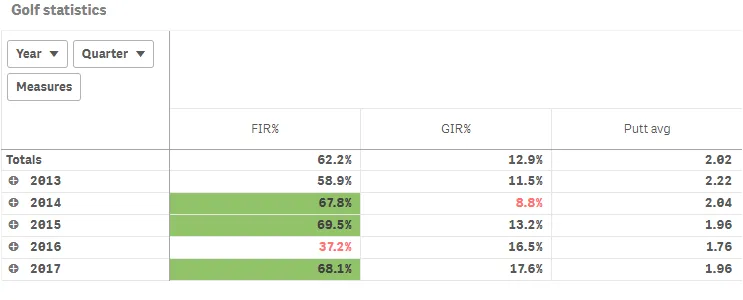

Cell background color and text color in pivot tables

The qAttributeExpressions property behaves differently in pivot tables compared to in straight tables. For pivot tables, it consists of two arrays, where the first array is for defining the background color and the second array is for defining the text color. There is therefore no need to define "id": "cellBackgroundColor" or "id": "cellForeroundColor" for pivot tables.

"qAttributeExpressions": [
  {
    "qExpression": "If(Avg(FwHit)>0.667, RGB(145, 194, 106))"
  },
  {
    "qExpression": "If(Avg(FwHit)<0.5, RGB(255, 115, 115))"
  }
]
cell background color
pivot table
