Get started with qlik-embed in Svelte

Embed your first Qlik visualization in a Svelte app in minutes using the @qlik/embed-svelte package and OAuth2 single-page application authentication.

Prerequisites

  • A Qlik Cloud tenant with at least one Analytics app and visualization
  • Node.js 24 or later
  • An OAuth2 SPA client with:
    • Scope: user_default
    • Redirect URI: http://localhost:5173/oauth-callback.html
    • Allowed origin: http://localhost:5173
Note

If your dev environment uses a different port than 5173, update the redirect URI and allowed origin accordingly.

Step 1: Create a new Svelte app

  1. Generate a new Svelte project with TypeScript and Vite:
Terminal window
npm create vite@latest my-minimal-qlik-svelte-app -- --template svelte-ts
  1. Navigate into the project and install dependencies:
Terminal window
cd my-minimal-qlik-svelte-app
npm install

Step 2: Add @qlik/embed-svelte to the project

Run the following command:

Terminal window
npm install @qlik/embed-svelte

Step 3: Create the OAuth callback page

In this example, you need a dedicated callback page that handles the OAuth2 redirect after login. When a user authenticates with Qlik Cloud, the OAuth provider redirects back to this page, which securely exchanges the authorization code for an access token.

Create oauth-callback.html in your project root:

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <script
      crossorigin="anonymous"
      type="application/javascript"
      data-host="https://your-tenant.us.qlikcloud.com"
      src="https://cdn.jsdelivr.net/npm/@qlik/embed-web-components@1/dist/oauth-callback.min.js"
    ></script>
  </head>
</html>

Replace https://your-tenant.us.qlikcloud.com with your Qlik Cloud tenant URL.

Step 4: Update the vite configuration

Configure Vite to serve both your app and the OAuth callback page.

Replace the contents of vite.config.ts:

import { svelte } from "@sveltejs/vite-plugin-svelte";
import { resolve } from "path";
import { defineConfig } from "vite";


export default defineConfig({
  plugins: [svelte()],
  build: {
    rollupOptions: {
      input: {
        index: resolve(__dirname, "index.html"),
        "oauth-callback": resolve(__dirname, "oauth-callback.html"),
      },
    },
  },
});

Step 5: Set up default host configuration

Set up a default host configuration in your main entry point.

Replace the contents of src/main.ts:

import { mount } from 'svelte'
import { importRuntimeModule } from "@qlik/runtime-module-loader";
import type { HostConfig } from "@qlik/embed-runtime/auth";
import "./app.css";
import App from "./App.svelte";


const hostConfig: HostConfig = {
  host: "https://your-tenant.us.qlikcloud.com",
  clientId: "<CLIENT_ID>",
  redirectUri: "http://localhost:5173/oauth-callback.html",
  autoRedirect: true,
};


// Set the default host config for all embed components
importRuntimeModule("auth@v1", hostConfig).then((authModule) => {
  authModule.setDefaultHostConfig(hostConfig);
});


const app = mount(App, {
  target: document.getElementById('app')!,
})


export default app

Replace placeholders:

Step 6: Update src/App.svelte

Replace the default src/App.svelte file with code that imports the QlikEmbed component and displays your visualization:

<script lang="ts">
  import QlikEmbed from "@qlik/embed-svelte";
</script>


<main>
  <h1>Embedded Chart</h1>
  <div class="chart-container">
    <QlikEmbed
      ui="analytics/chart"
      appId="<APP_ID>"
      objectId="<OBJECT_ID>"
    />
  </div>
</main>


<style>
  .chart-container {
    width: 500px;
    height: 500px;
  }
</style>

Replace placeholders:

  • appId: Your app ID
  • objectId: Your visualization ID

Step 7: Start the development server

  1. Run the following command:
Terminal window
npm run dev
Note

If Vite runs on a different port (check the terminal output), update your OAuth client configuration and the redirectUri in your code to match. For example, if the server runs on http://localhost:5174, update all references accordingly.

  1. Open your browser to http://localhost:5173.

  2. The browser redirects you to the Qlik Cloud login page. Log in with your credentials.

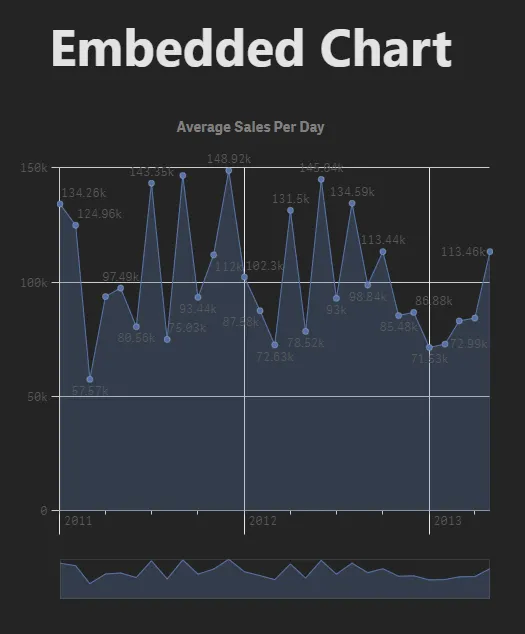

After logging in, a chart loads displaying data from your app.

Embedded Qlik chart

Troubleshooting

  • OAuth errors: Verify redirectUri matches your OAuth client config and oauth-callback.html is in your project root
  • Chart not showing: Verify appId and objectId are correct and you have permissions in Qlik Cloud
  • Module errors: Run npm install @qlik/embed-svelte

Next steps

Now that you have a working embed:

For complete qlik-embed documentation, see qlik-embed.
