Reuse existing properties

There are some typical properties used for the most common native Qlik Sense visualizations. All native visualizations have an Appearance section with a section header General. Most native visualizations allow Dimensions and Measures to be defined.

Defining properties

If you create a visualization extension without defining a properties panel, Qlik Sense will per default include the Appearance section.

The same result will be achieved by reusing the settings section, which is the internal name for the Appearance section.

define( [
  'jquery'
  ],
  ( $ )=>{
    'use strict';

  return {

    // Define what the properties panel looks like
    definition: {
      type: "items",
      component: "accordion",
      items: {
        appearance: {
          uses: "settings",
        }
      }
    },
    // Paint/Rendering logic
    paint: ( $element /*, layout*/ )=>{

      $element.empty();
      const $msg = $( document.createElement( 'div' ) );
      $msg.html( 'Just demonstrating default behavior of the property panel' );
      $element.append( $msg );
    }
  };
});

Based on the preceding code, you can now extend definition to reuse other built-in sections. In this example, you will also reuse the dimensions, measures, and sorting sections.

    // Define what the properties panel looks like
    definition: {
      type: "items",
      component: "accordion",
      items: {
        dimensions: {
          uses: "dimensions"
        },
        measures: {
          uses: "measures"
        },
        sorting: {
          uses: "sorting"
        },
        appearance: {
          uses: "settings",
        }
      }
    },

This will result in the following properties panel.

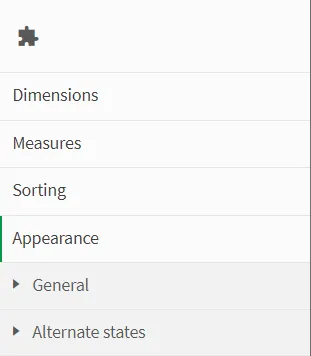

Properties panel example with
custom Appearance Options

Referencing properties

The layout parameter is passed to the paint method and it includes the current scope of the visualization extension together with the properties that are defined.

// Paint/Rendering logic
paint: function ( $element, layout ) {
  console.info('paint >> layout >> ', layout);
}

If you look at the console output in, for example, Chrome DevTools, you will find what you are looking for.

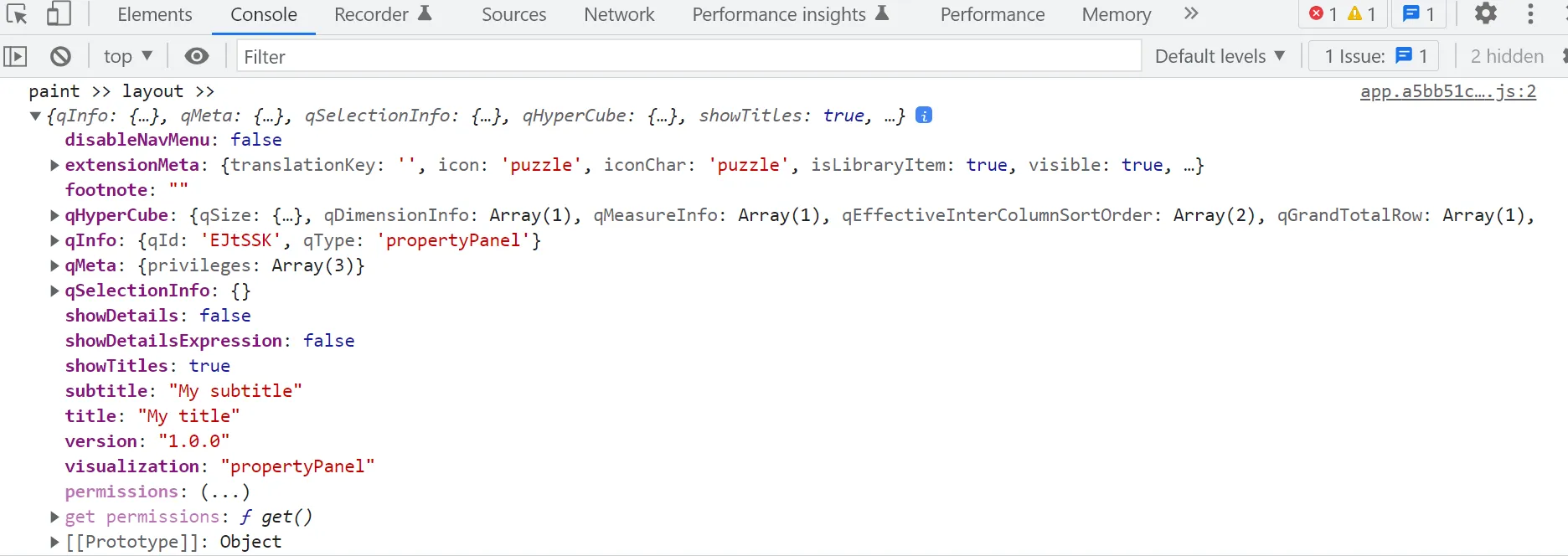

Chrome Devtools example output
displaying paint method

With this information, you can now start to output some values into the paint method.

// Paint/Rendering logic
paint: function ( $element, layout ) {
  //output values from the property panel
  $element.empty();
  //output container
  const $msg = $( document.createElement( 'div' ) );

  //variable holding the output
  const html = '<b>Property values:</b><br/>';
  html += 'Title: ' + layout.title + '<br/>';
  html += 'Subtitle: ' + layout.subtitle + '<br/>';

  //assign the variable to the output container
  $msg.html( html );

  //add the output container to the current element
  $element.append( $msg );
}

This will result in the following.

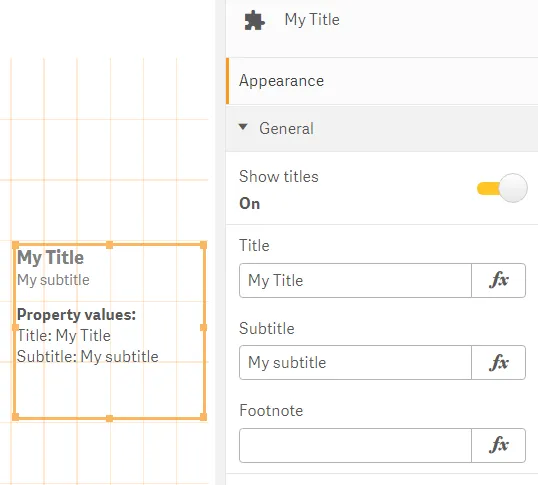

Extension example with multiple custom
text fields

Note: If you have Dimensions and Measures sections defined, you need to comment them out for the preceding example to work.

Native properties that can be reused

This section lists the native Qlik Sense properties that can be reused in your properties panel definition.

Dimensions

When you reuse the Dimensions section, it includes the following:

  • Add dimension

When you have added a dimension, you have the following default properties:

  • Field
  • Label
  • Show null values
  • Limitation
  • Show others
  • Others label

Example: Add Dimensions section

The example below depicts how to add a Dimensions section to the properties panel of your visualization extension. Note that it is defined that the visualization extension must have exactly one dimension.

  define( [], function ( ) {

    return {
      type: "items",
      component: "accordion",
      items: {
        dimensions: {
          uses: "dimensions",
          min: 1,
          max: 1
        }
      }
    };
 });

Measures

When you reuse the Measures section, it includes the following:

  • Add measure

When you have added a measure, you have the following default properties:

  • Label
  • Expression
  • Number formatting

Example: Add Measures section

This example depicts how to add the definition of the Measures section to the properties panel of your visualization extension. Note that the visualization extension must have exactly one measure, which is defined here.

define( [], ( )=>{

  return {
    type: "items",
    component: "accordion",
    items: {
      dimensions: {
        uses: "dimensions",
        min: 1,
        max: 1
      },
      measures: {
        uses: "measures",
        min: 1,
        max: 1
      }
    }
  };
});

Sorting

When you reuse the Sorting section, it includes the following:

  • Labels of the dimension and measure used in the visualization extension
  • Sorting option (Auto or Custom)

The Custom option includes the following:

  • Sort by expression (only available for dimensions)
  • Sort numerically
  • Sort alphabetically
  • Sort by frequency (only available for filter panes)

Example: Add Sorting section

This example depicts how you can add the definition of the Sorting section to the property panel of your visualization extension. No alterations have been made to the Sorting section pre-defined by Qlik Sense.

define( [], ( )=>{

  return {
    type: "items",
    component: "accordion",
    items: {
      dimensions: {
        uses: "dimensions",
        min: 1,
        max: 1
      },
      measures: {
        uses: "measures",
        min: 1,
        max: 1
      },
      sorting: {
        uses: "sorting"
      }
    }
  };
});

Add-ons

When you reuse the Add-ons section, it includes the following:

  • Data handling
  • Reference lines

Example: Add Add-ons section

This example depicts how to add the definition of the Add-ons section to the properties panel of your visualization extension. No alterations have been made to the Add-ons section pre-defined by Qlik Sense.

define( [], ( )=>{

  return {
    type: "items",
    component: "accordion",
    items: {
      dimensions: {
        uses: "dimensions",
        min: 1,
        max: 1
      },
      measures: {
        uses: "measures",
        min: 1,
        max: 1
      },
      sorting: {
        uses: "sorting"
      },
      addons: {
        uses: "addons"
      }
    }
  };
});

Appearance (settings)

Note: The Appearance section is named settings in the code. See the following example.

When you reuse the Appearance section, it includes the following:

  • General: Includes settings for Title, Subtitle and Footnote
  • Presentation (only available for visualizations that have more than one dimension)
  • Colors and legend (only available in some types of visualizations)
  • X-axis (only available in some types of visualizations)
  • Y-axis (only available in some types of visualizations)

Example: Add Appearance section

This example depicts how you add the definition of the Appearance section to the properties panel of your visualization extension. No alterations have been made to the Add-ons section pre-defined by Qlik Sense.

define( [], ( )=>{

  return {
    type: "items",
    component: "accordion",
    items: {
      dimensions: {
        uses: "dimensions",
        min: 1,
        max: 1
      },
      measures: {
        uses: "measures",
        min: 1,
        max: 1
      },
      sorting: {
        uses: "sorting"
      },
      addons: {
        uses: "addons"
      },
      settings: {
        uses: "settings"
      }
    }
  };
});
