Using qlik-cli with Qlik Sense Enterprise client-managed Repository API (QRS)

Overview

In this tutorial, you are going to learn how to authorize qlik-cli to connect to Qlik Sense Enterprise client-managed instances using JSON web tokens (JWT).

  • Create a public / private key pair for signing JWTs
  • Configure JWT virtual proxy
  • Create a JWT
  • Configure a context in qlik-cli
  • Test the connection
  • Review the available Qlik Repository Service (QRS) commands
  • Review the Token.js code

Requirements

  • qlik-cli version 1.5.0 or higher
  • A Qlik Sense Enterprise client-managed instance
  • Access to create virtual proxies in Qlik Sense. This demo uses an account with the RootAdmin role assigned.

Create a public / private key pair for signing JWTs

Open a terminal window and use openssl to generate public and private keys. Store the private key someplace safe and don’t share it. The public key is used in the configuration section.

openssl genrsa -out privatekey.pem 4096
openssl req -new -x509 -key privatekey.pem -out publickey.cer -days 1825

Note If you are using Windows, you need to download and install openssl. You can obtain a copy of openssl from here.

Configure JWT virtual proxy

Open a browser and authenticate to the Qlik Management Console (QMC) on your client-managed site at https://<server_hostname>/qmc.

a screenshot of an address bar with a URL to Qlik Management
Console

In the menu panel on the left side of the screen, click Virtual proxies in the Configure System section.

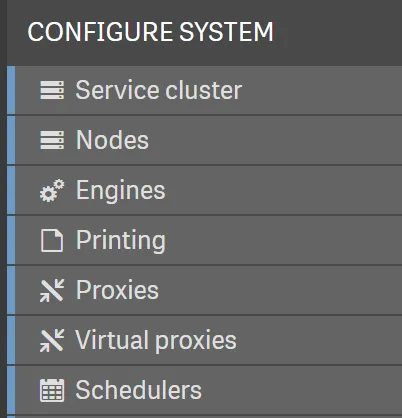

a screenshot of the Configure System menu section of the Qlik
Management Console

At the bottom of the screen, click the Create new button.

a screenshot of the Create new button for a virtual proxy
in the Qlik Management Console

In the virtual proxy configuration screen, use the menu on the right side of the screen to navigate through the configuration steps.

Click Identification and provide a description, a prefix, and a session cookie header name.

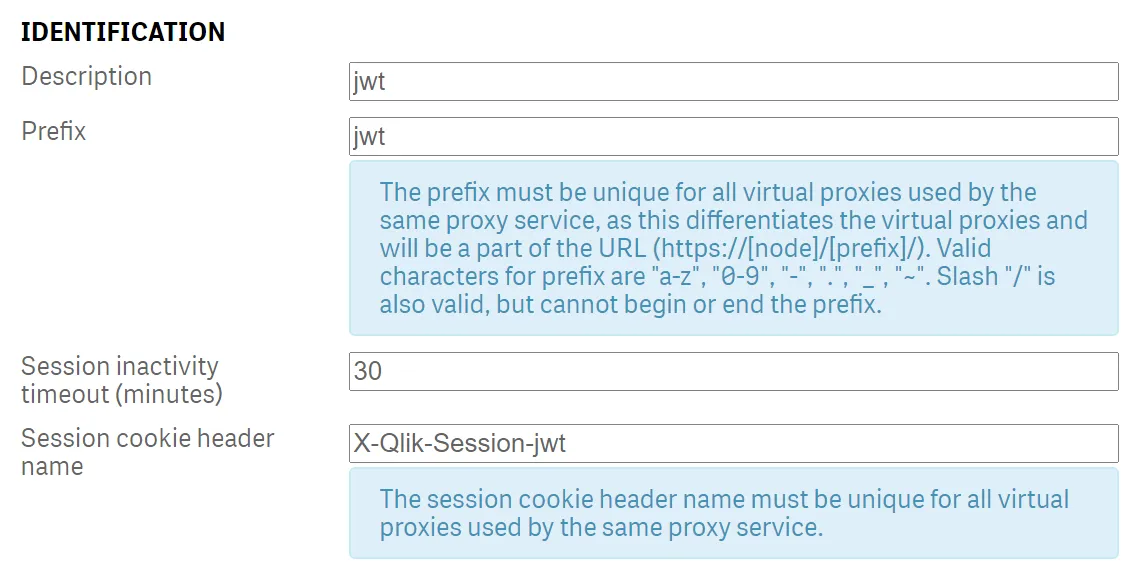

a screenshot of the Identification section for a virtual proxy
configuration

If you are copying the screenshot, enter jwt for the description and prefix, and append it to the end of the cookie header name.

Note All three values must be unique within a Qlik Sense instance. It’s not possible to have virtual proxies that share prefixes or session cookies.

Click Authentication and set the inputs to the following values:

  • Anonymous access mode: No anonymous user
  • Authentication method: JWT

Changing the authentication method surfaces additional inputs that you must populate.

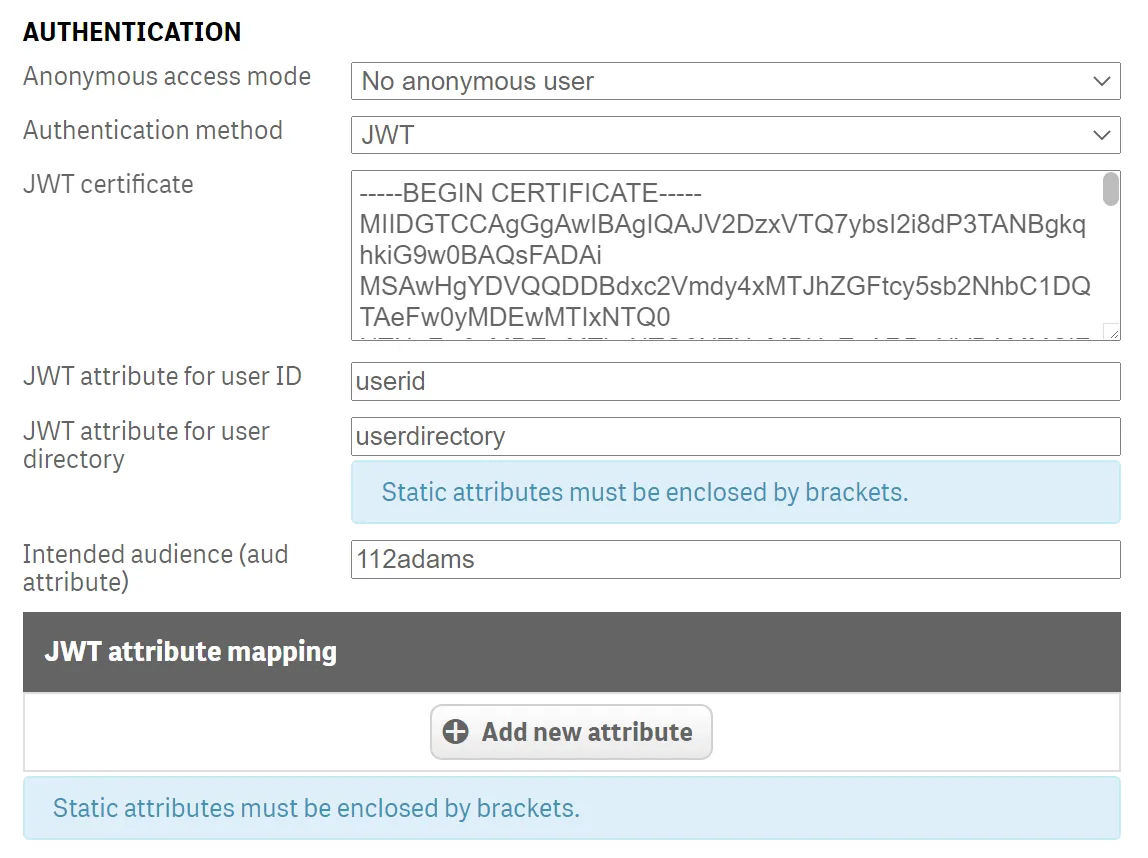

a screenshot of the Authentication section for a virtual proxy
configuration
  • JWT certificate: Open the public key file created earlier, copy the entire contents as-is, and paste it into the input box
  • JWT attribute for UserID: This is the key in the JWT payload that the virtual proxy looks for to get the userid
  • JWT attribute for UserDirectory: This is the key in the JWT payload that the virtual proxy looks for to get the user directory
  • Intended audience: This is a parameter for signature verification of the JWT when it’s passed from the client to the virtual proxy. If the audience in the JWT doesn’t match the value input here, authorization is going to fail.

Note It’s possible to map attributes from a JWT to Qlik Sense attributes, however, that capability is out of scope for this tutorial. See Virtual proxy configuration in Qlik help.

Click Load Balancing from the menu on the right side of the screen and add a new server node. In this tutorial, the Central node is used.

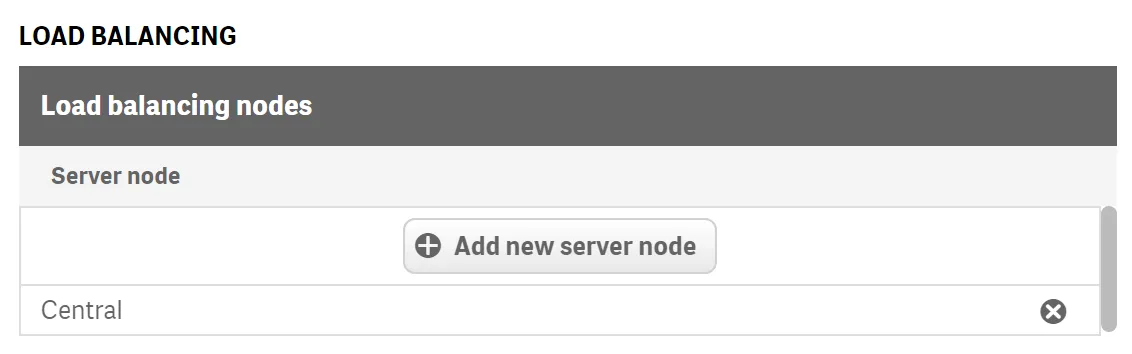

a screenshot of the Load balancing section for a virtual proxy
configuration

Click Advanced. Uncheck the https secure attribute and set the SameSite attribute to “No Attribute.”

Note Only perform this step for testing purposes only. Make sure the configuration is secure in production environments. See Editing a Virtual Proxy in Qlik help for more information on the secure and SameSite attributes.

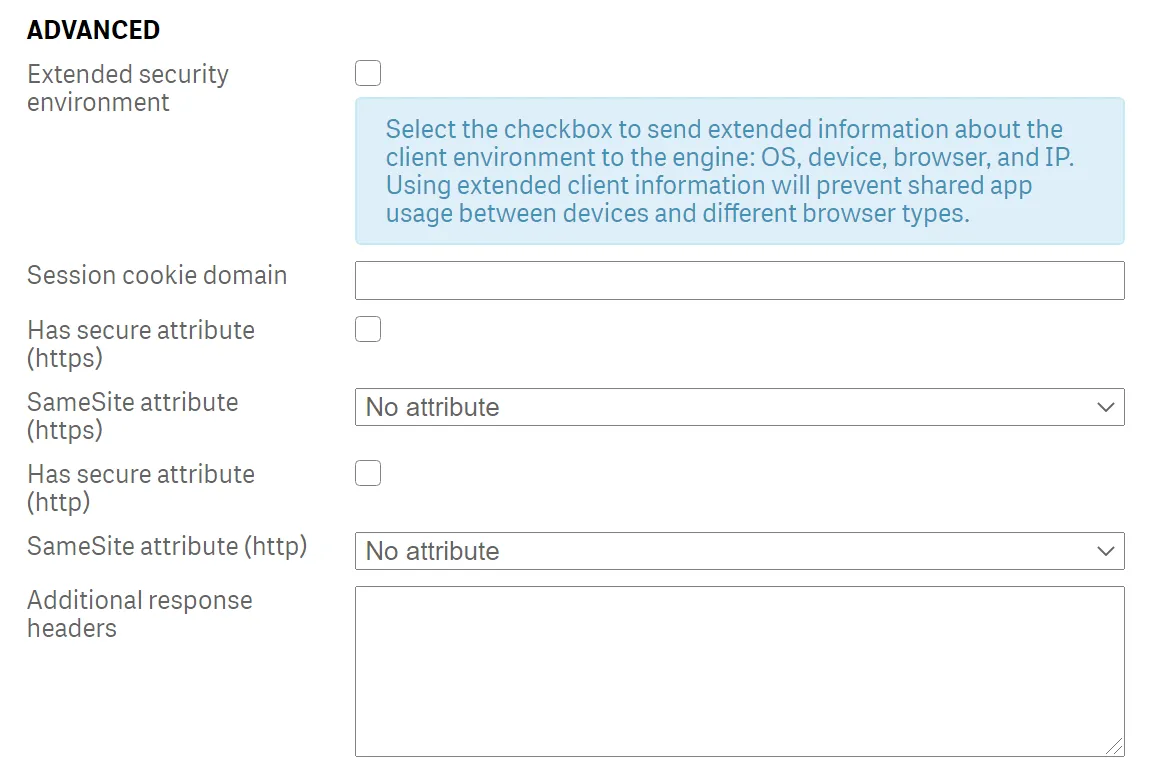

a screenshot of the Advanced section for a virtual proxy
configuration

In the Advanced section there is a Host allow list. If you are not connecting to this Qlik Sense server via it’s machine name, then add the domain or IP address of the Qlik Sense server to the Host allow list. In this example, the connection to the server is made via its IP address, therefore the IP address has been added to the allow list.

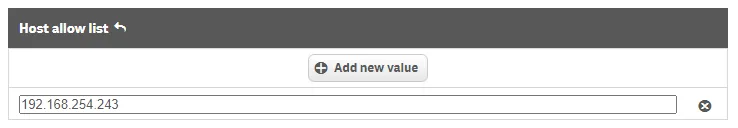

a screenshot of the Host allow list section for a virtual
proxy configuration

With the virtual proxy configured, click Apply.

Click the Proxies menu item on the right side of the screen. This brings up the list of proxies this virtual proxy may be linked to.

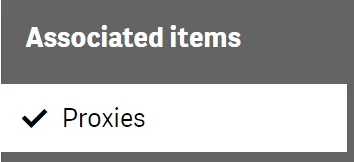

a screenshot of the Proxies menu item for a virtual
proxy configuration

Press the Link button and add the Central proxy to the configuration.

a screenshot of the Link button for a virtual

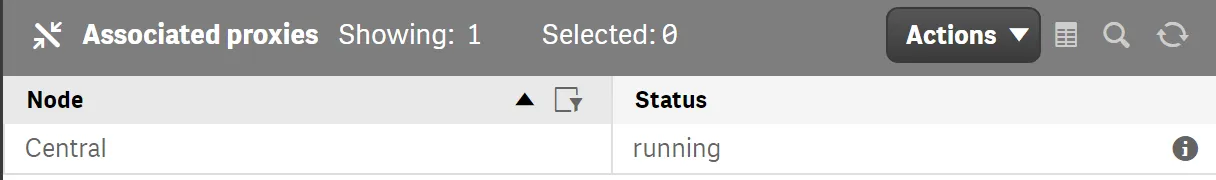

proxy configuration a screenshot of the linked proxy for a virtual
proxy configuration

JWT format for Qlik Sense authorization

The JWT is made of three pieces:

  1. The payload.
  2. The signing options.
  3. The private key for signing the token.

The payload

Here is a sample payload for a Qlik JWT used with Qlik Sense Enterprise on Windows. You need to substitute values that are valid for your environment.

// Creating a Qlik Sense on Windows payload.
const payload = {
  userid: 'harry',
  userdirectory: 'qsefw',
  name: 'Hardcore Harry',
  email: 'harry@example.com',
  groups: ['Adminstrators', 'Sales', 'Marketing'],
};

The signing options

Here is a sample signing options object for the JWT you are creating:

const signingOptions = {
  algorithm: 'RS256',
  expiresIn: '365d',
  audience: '112adams',
};

Note The format of the signing options and the payload of a JWT for Qlik Sense Enterprise on Windows differs from Qlik Sense Enterprise SaaS. For more information on Qlik Sense Enterprise SaaS JWTs, see the tutorial on creating signed tokens for jwt authorization.

The private key for signing the token

Read the private key into the token generator using fs and then create the token using the jsonwebtoken node module.

// This is the private key to encrypt the JWT. This example uses certificates
// generated by the Qlik Sense Enterprise on Windows server.
const jwtEncryptionKey = fs.readFileSync('<path to the private key pem file');

// Create the token
const token = jsonWebToken.sign(payload, jwtEncryptionKey, signingOptions);

Run the code in a command line or terminal window (full code snippet at the end of the tutorial) node token.js. In the console window, the signed JWT appears and can be used as a bearer token for accessing Qlik Sense on Windows.

## Bearer token
eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyaWQiOiJoYXJyeSIsInVzZXJkaXJlY3RvcnkiOiJxc2VmdyIsIm5hbWUiOiJIYXJkY29yZSBIYXJyeSIsImVtYWlsIjoiaGFycnlAZXhhbXBsZS5jb20iLCJncm91cHMiOlsiQWRtaW5zdHJhdG9ycyIsIlNhbGVzIiwiTWFya2V0aW5nIl0sImlhdCI6MTYwMzgxOTYyOSwiZXhwIjoxNjM1MzU1NjI5LCJhdWQiOiIxMTJhZGFtcyJ9.gDWFqJ8fZbo9QpF52CnlhKCMsHal2AcobIVwhVCpnbLfpmc-Z_k4uUWGh2TxaSucjQ5-k5I9s9sNgIPskqaVQN2JanFXxIJKRFow9LbuSbImZs74RsQ6TqsoJTu7_5eKLv2VRAqoh6Tqabl5vma1JdhHbsTKGixt8yGZI7Q2QNjObQq8hAh6VveNWcUVkB60LEMOPiipij7VTKQ7IQg-rG4XA8xgYxbOb6i3Q6miY4kGSGujbsjtYLevEJQlEZtij2JMMDeH_nwH2MWhWhOBL1TpAAUKkCOxPFDjGacxGvkObAOFjL-Ztx0LdVwF2BXxVerQ1xKyl0YpLErS4d576Q

Configure a context in qlik-cli

Open a terminal window and use the context command to add the Qlik Sense Enterprise on Windows server to qlik-cli.

##qlik context create <contextName> --server <serverUrl> --server-type windows --api-key <JWTToken>

qlik context create QSEoW --server https://192.168.254.243/jwt --server-type windows --api-key eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyaWQiOiJoYXJyeSIsInVzZXJkaXJlY3RvcnkiOiJxc2VmdyIsIm5hbWUiOiJIYXJkY29yZSBIYXJyeSIsImVtYWlsIjoiaGFycnlAZXhhbXBsZS5jb20iLCJncm91cHMiOlsiQWRtaW5zdHJhdG9ycyIsIlNhbGVzIiwiTWFya2V0aW5nIl0sImlhdCI6MTYwMzgxOTYyOSwiZXhwIjoxNjM1MzU1NjI5LCJhdWQiOiIxMTJhZGFtcyJ9.gDWFqJ8fZbo9QpF52CnlhKCMsHal2AcobIVwhVCpnbLfpmc-Z_k4uUWGh2TxaSucjQ5-k5I9s9sNgIPskqaVQN2JanFXxIJKRFow9LbuSbImZs74RsQ6TqsoJTu7_5eKLv2VRAqoh6Tqabl5vma1JdhHbsTKGixt8yGZI7Q2QNjObQq8hAh6VveNWcUVkB60LEMOPiipij7VTKQ7IQg-rG4XA8xgYxbOb6i3Q6miY4kGSGujbsjtYLevEJQlEZtij2JMMDeH_nwH2MWhWhOBL1TpAAUKkCOxPFDjGacxGvkObAOFjL-Ztx0LdVwF2BXxVerQ1xKyl0YpLErS4d576Q

To use the context after setting it, enter qlik context use <contextName>

Test the connection

In the terminal window opened earlier, test the connection by entering the command to list the applications on the server.

Note Access qrs commands in qlik-cli starting with qlik qrs. In addition, when you connect to the server using the qlik-cli, if there is no trusted certificate installed on the system certificate validation fails. Instruct qlik-cli to ignore certificate validation errors by using the --insecure flag.

# set the context to the Qlik Sense Enterprise on Windows server
# replacing <contextName> with the context name set in qlik-cli
# qlik context use <contextName>

qlik context use QSEoW

# list the applications on the server

qlik qrs app ls --insecure
// returns JSON like below
[
  {
    "id": "931d847e-b36a-4511-9547-6cc0f46b1b9c",
    "name": "ConsumerSales",
    "appId": "",
    "publishTime": "2020-10-21T12:48:16.987Z",
    "published": true,
    "stream": {
      "id": "387f4d65-c171-4120-9db0-3cd537b469a8",
      "name": "CNPDemo",
      "privileges": null
    },
    "savedInProductVersion": "12.688.0",
    "migrationHash": "64d115e925e2167bba72939c2d8a80e6beef4a56",
    "availabilityStatus": 5,
    "privileges": null
  }
]

List of available Qlik Repository Service (QRS) commands

Here is a list of commands available in qlik-cli to interact with QRS.

qlik qrs --help

Usage:
  qlik qrs [flags]
  qlik qrs [command]

Available Commands:
  app                           Manage apps
  appcontent                    Upload or remove content used in apps
  applicationlog                Get the log for a specific application
  appstatus                     Get migration status of an app
  binarydownload                Download binary
  cache                         Empty the cache in the Qlik Sense Repository Service (QRS)
  compositeevent                Manage composite event triggers for specific
                                tasks e.g. reload
  compositeeventoperational     Get the status of a composite event
  compositeeventruleoperational Get the rule status of a composite event
  contentlibrary                Manage static content that can be used in
                                e.g. Qlik Sense apps
  custom                        Manage custom resources
  custompropertydefinition      Manage custom properties that can be applied to a resource
  dataconnection                Manage data connections that enables selection
                                and loading of data from different data sources
  download                      Download exported apps, reload tasks or
                                SAML metadata
  executionresult               Get the execution result for a specific task
  executionsession              Get the status of a specific task during execution
  extension                     Manage extensions used for apps
  managementconsolelog          Get the log for the management console
  reloadtask                    Create reload tasks and corresponding triggers (events)
  reloadtaskoperational         Get the status of a reload task
  schemaevent                   Manage schema event triggers
  schemaeventoperational        Get the status of a schema event
  selection                     Manage selections that refer to a specific enitity type
  servicestatus                 Get status of the service
  staticcontent                 Get a list of the static content files in,
                                for example, a content library.
  staticcontentreference        Get the mapping between the external path
                                and the physical file in the repository
                                for all static content
  staticcontentreferencebase    Get the mapping between the external path and
                                the physical file in the repository for base
                                static content
  stream                        Manage streams that are used for published apps
  tag                           Manage tags that can be applied to a resource
  task                          Manage tasks that can be executed by
                                the Qlik Sense Scheduler
  taskoperational               Get status of a task
  user                          Manage resources owned by a specific user
  userdirectory                 Manage user directory connectors (UDCs)

Token.js code sample

This is the full code to generate a JWT.

const jsonWebToken = require('jsonwebtoken');
const fs = require('fs');

// This is the private key to encrypt the JWT. This example uses certificates
// generated by the Qlik Sense Enterprise on Windows server.
const jwtEncryptionKey = fs.readFileSync('<path to the private key pem file');

// kid and issuer have to match with the IdP config and the audience has to
// be qlik.api/jwt-login-session
const signingOptions = {
  algorithm: 'RS256',
  expiresIn: '365d',
  audience: '112adams',
};

// Creating a Qlik Sense on Windows payload.
const payload = {
  userid: 'harry',
  userdirectory: 'qsefw',
  name: 'Hardcore Harry',
  email: 'harry@example.com',
  groups: ['Adminstrators', 'Sales', 'Marketing'],
};

// Create the token
const token = jsonWebToken.sign(payload, jwtEncryptionKey, signingOptions);
console.log(token);
